ASPROPYRGOS (HELPE INSTALLATION)
Is the one with the largest capacity in Greece for both crude oil and products, belonging to the most important company in Greek Energy industry, Hellenic Petroleum.

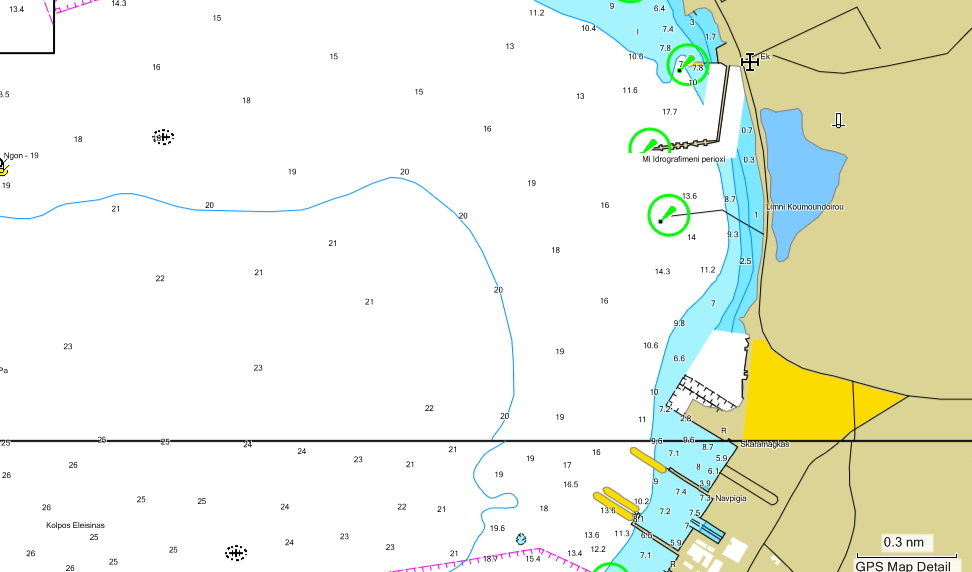

Location
- Lat 38.0248 N
- Long 023.5937 E
Average water density is 1.025 while tidal range is +/-30 cm
Approach — Pilotage
Vessels with destination Aspropyrgos, have to arrive at Piraeus port in order to have pilot boarded for passing through Salamis channel to Eleusis bay. (VHF-CH-12-)
Draft at Salamis channel is 10.89 meters.
The same pilot berths vessel alongside Aspropyrgos Helpe-Installations, (if prospects are on arrival).
Berths
NEW PIER (Crude oil) : (2) Berths are available for berthing two vessels, while berthing and unberthing only take place during daylight.
LOA: 245 meters
Draft: 10,89 meters
Maximum alongside displacement : 70.000 MT
Maximum Manifold Height Above Water: 15.85 meters (used both sides)-(4) Hard arms 8’’
Vessels berth with starboard side alongside at New Pier No 10 and with portside alongside at New Pier No9.
LPG pier : is used for discharging/loading gases as well as MIRE cargoes.
Restrictions
Restrictions for this berth are as follows:
Draft: 5,80 meters
LOA: 150 meters
Maximum Manifold Height Above Water: 10 meters (port side)- (2) Hard arms 6’’
Maximum alongside displacement : 7.000 MT
Products loaded/discharged
Crude oil, Fuel oil, Gas oil, MTBE, Naphtha, Gasoline , Lpg mix (Pressurized/Refrigerated), Butane,Propane,e.t.c. are loading and discharging at Aspropyrgos Helpe Installation.
